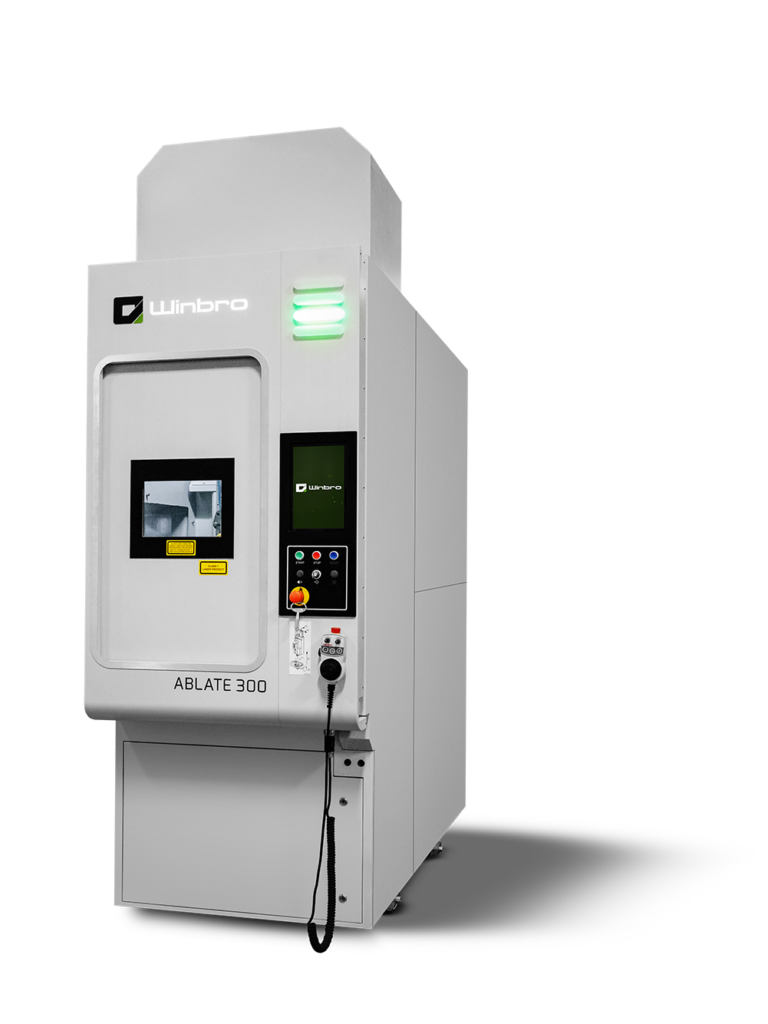

ABLATE-300 High Speed Laser micro-machining System

Winbro’s ABLATE-300 provides substantially faster laser processing times with a minimal impact on your floor space.

ABLATE-300 High Speed Laser micro-machining System

Winbro’s ABLATE-300 provides substantially faster laser processing times with a minimal impact on your floor space.

Laser Source

Nano to femtosecond laser sources with varying wavelengths (IR, Green, and UV).

SCANNING HEAD

2D & 3D Scanning capability for complex form and texturing

QUALITY ASSURANCE

Integrated probe, power meter, and vision system to ensure part quality.

TECHNICAL SPECIFICATIONS of THE ABLATE- 300

External Dimensions (LxWxH)

W: 914 mm (36in)
L: 2555 mm (100.5 in)
H: 2316 mm (91.2 in)

Machine Weight

4000 kg (8800 lbs)

Machine Stroke (X.Y.Z)

Linear X Axis 300mm (11.81 inches)
Linear Y Axis 350mm (13.77 inches)
Linear Z Axis 550mm (21.65 inches)

Rotary Stroke (A.C)

Rotary A Axis + 10°/ – 143°
Rotary C Axis +/- 360°

Weight Capacity

10 kg (22 lbs) – Fixtures and Part

Maximize throughput
on your production

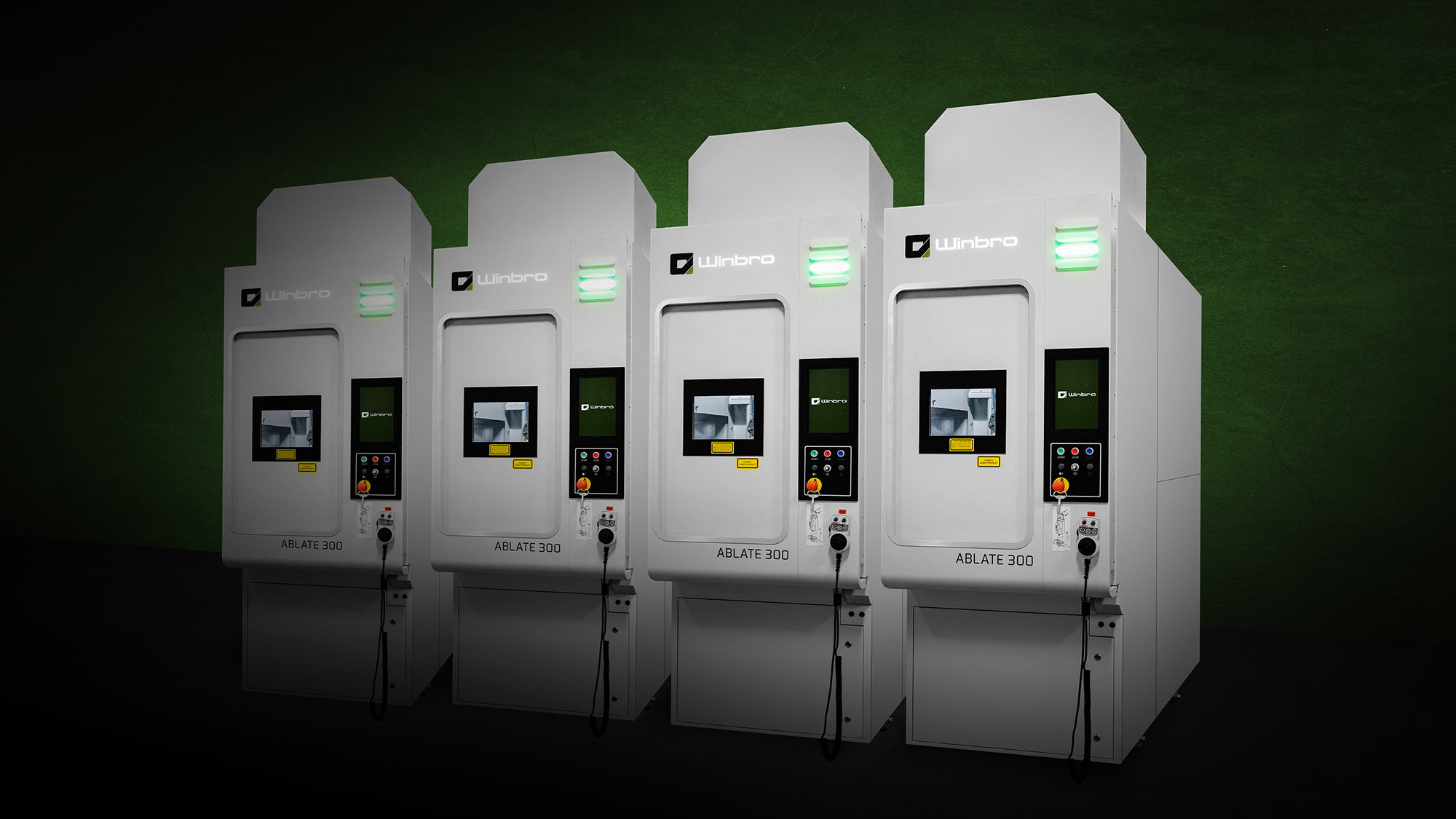

High Throughput
Small Footprint

Designed for high volume manufacturing and paired with the minimal footprint, the ABLATE-300 drives maximum effeciency of space shopfloors.

Automation &
Industry 4.0 Ready

Designed with automation in mind, ABLATE-300 supports front/top load/unload, and integrates with Cobot/AGV, and monitors perfor- mance in real-time via Cell HMI.

FLEXIBLE PLATFORM

Offering nanosecond through femto- second laser sources with 2D & 3D scanning capability. Multiple wavelengths are available for your processing requirments.

THE HIGHLIGHTS

THE HIGHLIGHTS

  • Industry leading laser micro-machining platform with the latest offering in laser technology.
  • Customize with multiple laser sources and scanning options to fit your needs and budget.
  • Optimize space with this 1010 cm (40 in) wide machine, designed for paint-to-paint placement.
  • Integrated laser power meter to ensure part-to-part production remains constant.

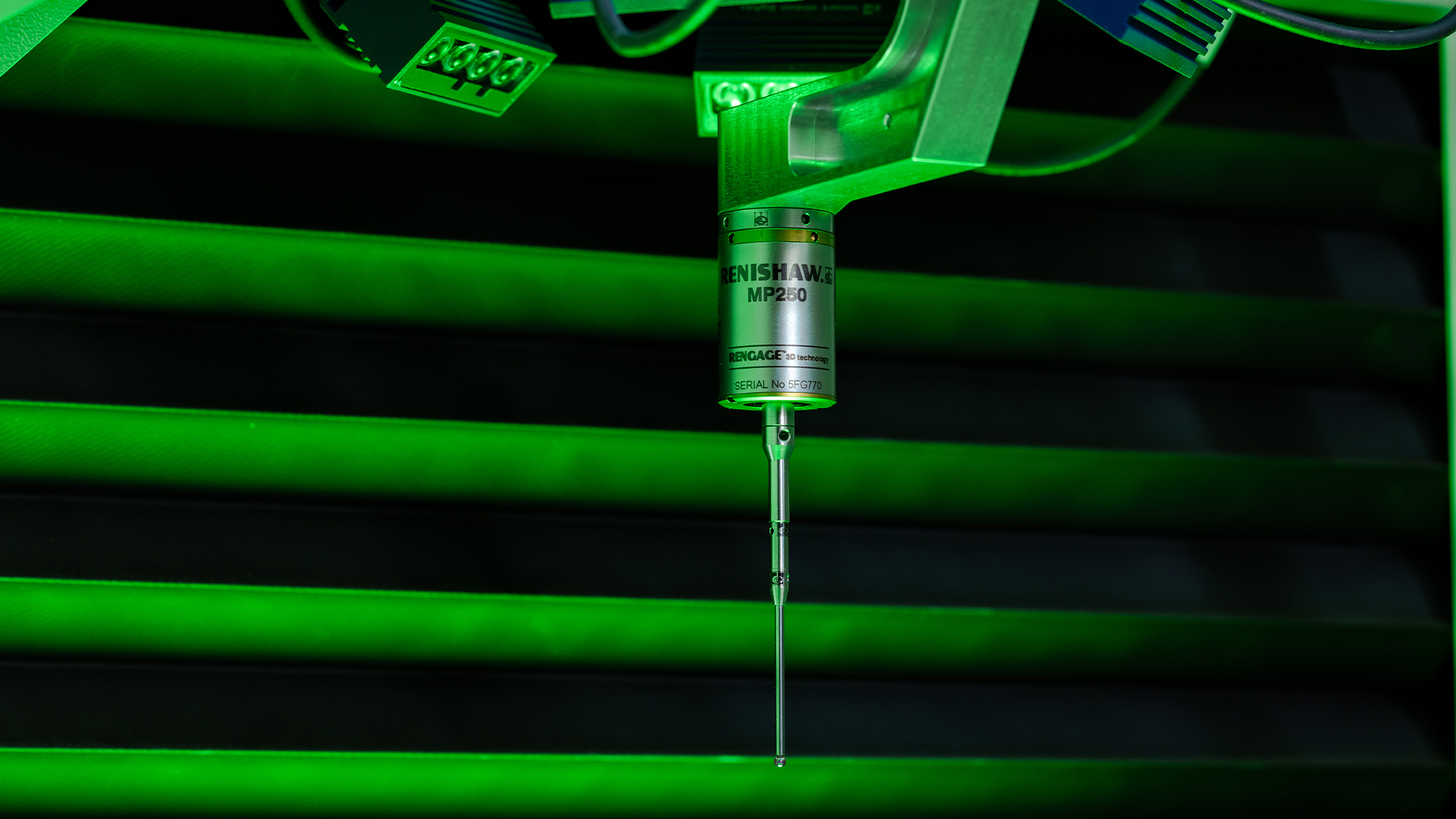

  • Renishaw probing for part, fixture, and machine geometric correction
  • Industry 4.0 compatible, tracking real-time and historical in-process data to optimize production.
