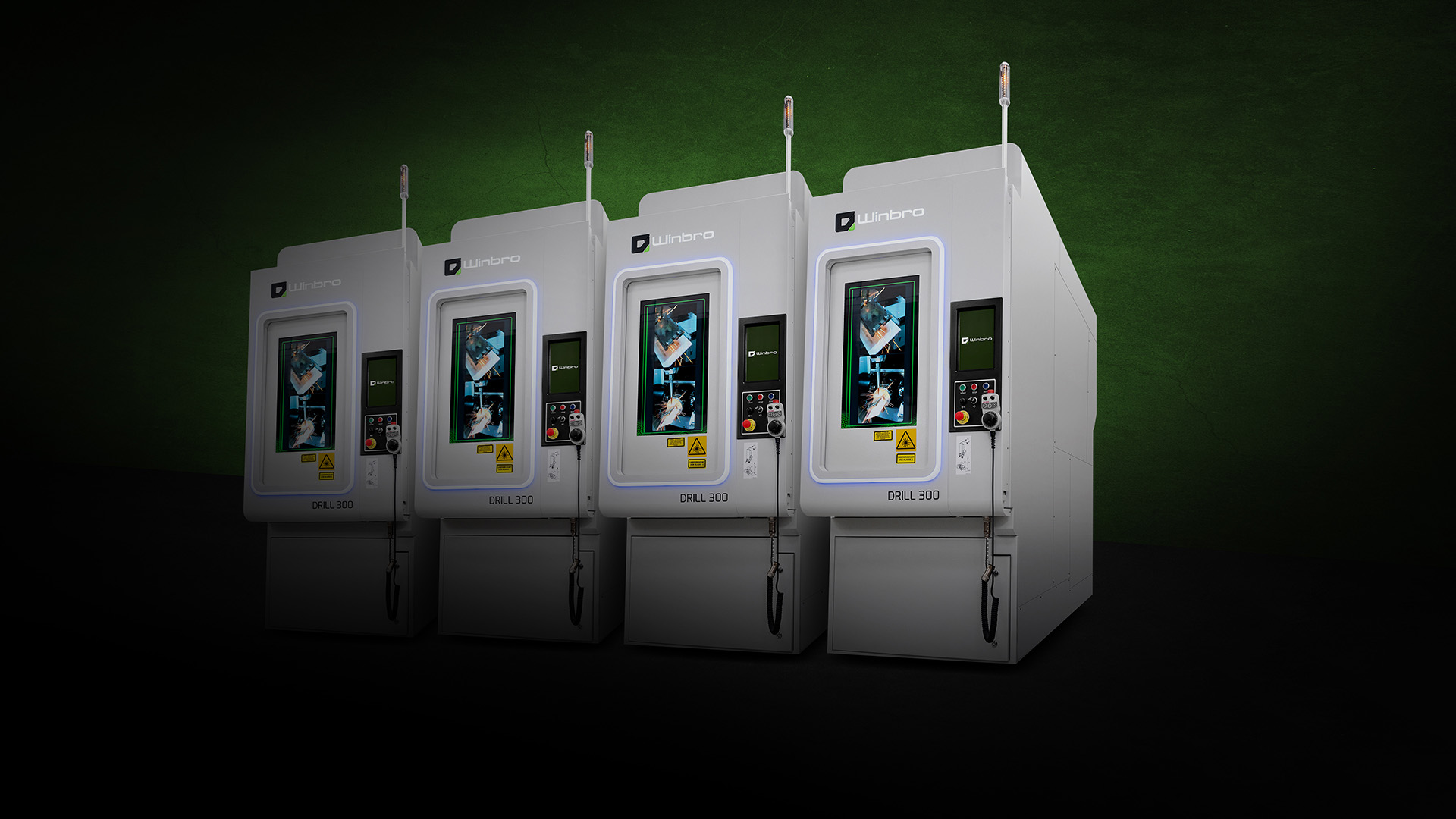

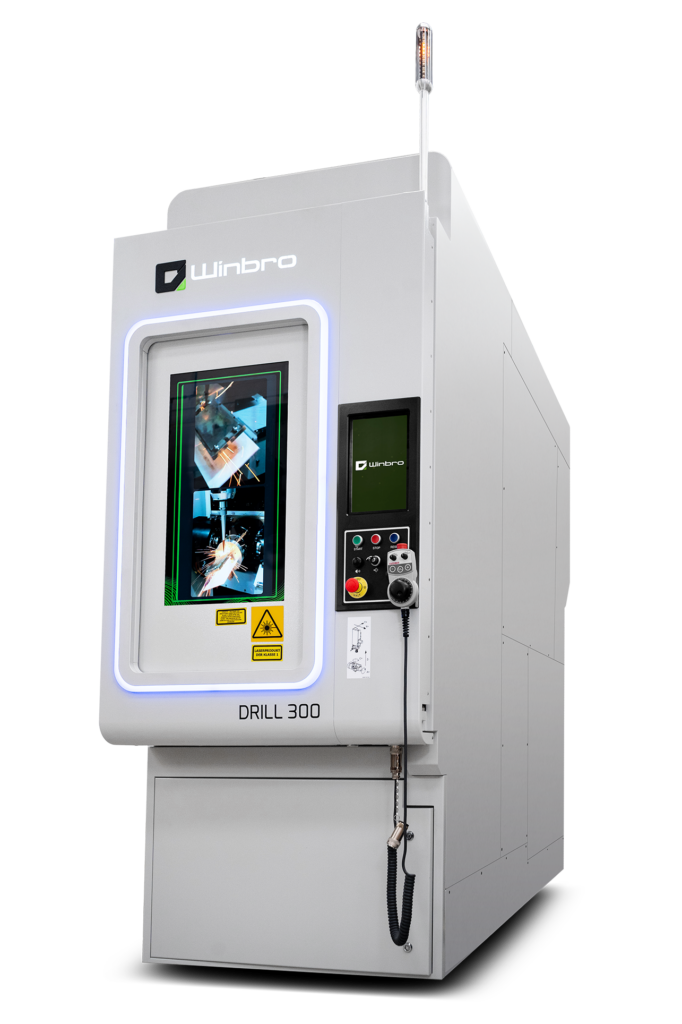

THE DRILL 300

INNOVATION UNLEASHED:
THE DRILL-300 SETS A NEW STANDARD IN LASER DRILLING

The DRILL-300 enhances our 300-series fleet by optimizing floor space and establishing a unified platform that aligns with our EDM and ABLATE systems.

DRILL 300

INNOVATION UNLEASHED:
THE DRILL-300 SETS A NEW STANDARD IN LASER DRILLING

The DRILL-300 enhances our 300-series fleet by optimizing floor space and establishing a unified platform that aligns with our EDM and ABLATE systems.

DESIGNED FOR PERFORMANCE

TECHNICAL SPECIFICATIONS

External Dimensions (LxWxH)

W: 101 cm (40 in)
L: 249 cm (98 in)
H: 310 cm (112 in)

Machine Weight

3025 kg (6670 lbs)

Machine Stroke (X.Y.Z)

Linear X Axis 300 mm (11.81 in)
Linear Y Axis 350 mm (13.77 in)
Linear Z Axis 550 mm (21.65 in)

Rotary Stroke (A.C)

Rotary A Axis + 10°/ – 143°
Rotary C Axis +/- 360°

Weight Capacity

3-Axis -45 kg (100 lb)

5-Axis – 10 kg (22 lb)

TECHNICAL SPECIFICATIONS

External Dimensions (LxWxH)

W: 101 cm (40 in)
L: 249 cm (98 in)
H: 310 cm (112 in)

Machine Weight

3025 kg (6670 lbs)

Machine Stroke (X.Y.Z)

Linear X Axis 300 mm (11.81 in)
Linear Y Axis 350 mm (13.77 in)
Linear Z Axis 550 mm (21.65 in)

Rotary Stroke (A.C)

Rotary A Axis + 10°/ – 143°
Rotary C Axis +/- 360°

Weight Capacity

3-Axis -45 kg (100 lb)

5-Axis – 10 kg (22 lb)

DRILL 300 HIGHLIGHTS

  • Cutting edge laser drilling & welding platform with the latest technology & automation
  • Customize with multiple integrated laser source options to fit your applications & budget
  • Optimize space with this compact 101.6 cm (40 in) wide machine, ideal for manufacturing cells
  • Integrated laser power meter ensures uniform part production
  • Renishaw probing for part, fixture, and machine geometric correction
  • Industry 4.0 compatible, tracking real-time and historical in-process data to optimize production.

DRILL 300 HIGHLIGHTS

  • Cutting edge laser drilling & welding platform with the latest technology & automation
  • Customize with multiple integrated laser source options to fit your applications & budget
  • Optimize space with this compact 101.6 cm (40 in) wide machine, ideal for manufacturing cells
  • Integrated laser power meter ensures uniform part production
  • Renishaw probing for part, fixture, and machine geometric correction
  • Industry 4.0 compatible, tracking real-time and historical in-process data to optimize production.

NEXT GENERATION OF LASER MACHINE TOOLS

HIGH THROUGHPUT
SMALL FOOTPRINT

Designed for high-volume manufacturing and paired with a minimal footprint, the DRILL 300 drives maximum space efficiency on shopfloors.

AUTOMATION & IIOT

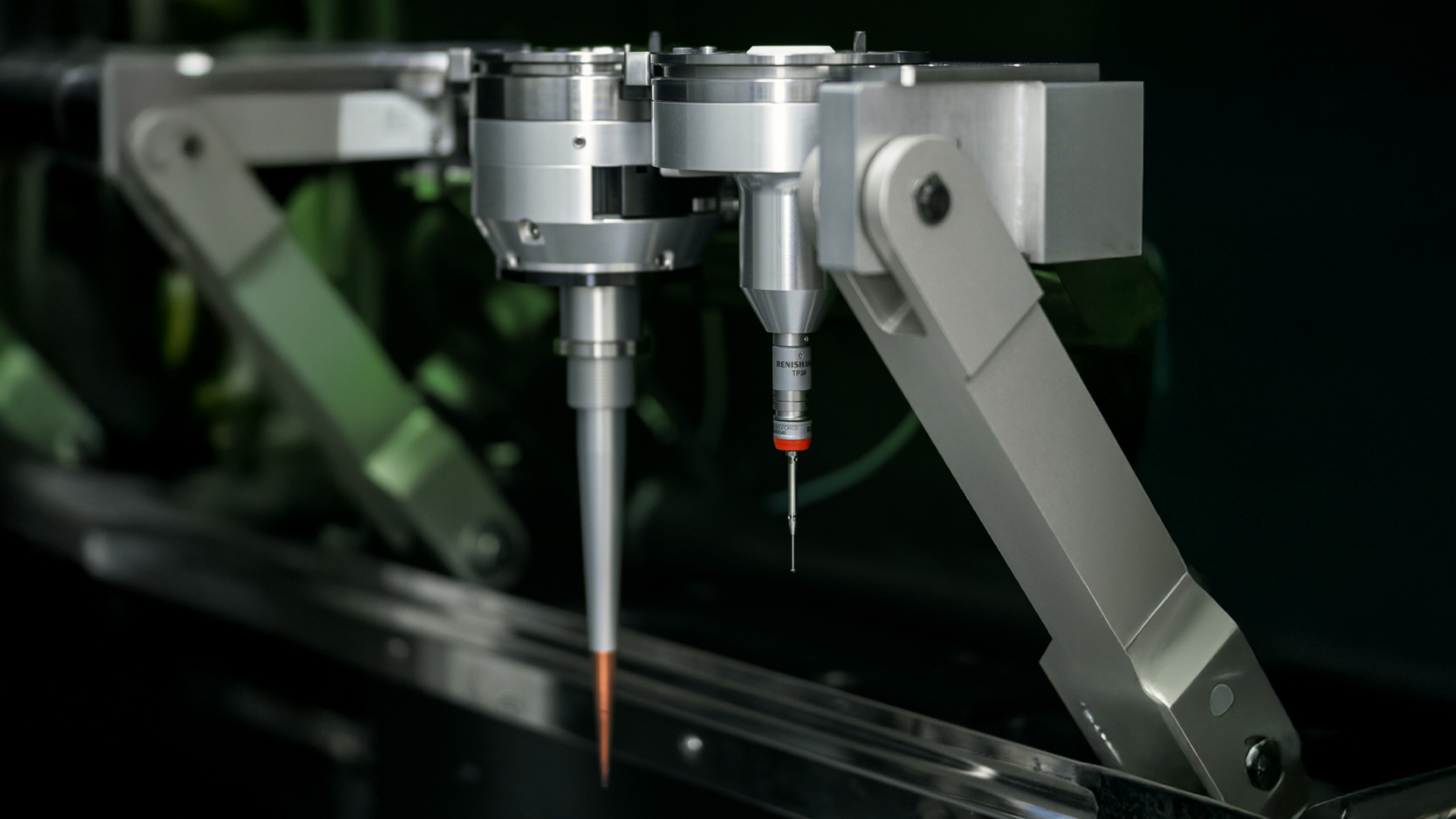

Integrated four station tool changer to allow for multiple drilling nozzles, welding heads, and/or probe tools. Additionally supports robot integration & Industry 4.0 data capture.

FLEXIBLE PLATFORM

Available with a range of lasers to suit a wide range of customer applications. The DRILL 300 is complemented by advanced features such as breakthrough detect, line scanning capabilities, and drilling on the fly.

THE NEXT GENERATION

OF LASER MACHINE TOOLS

HIGH THROUGHPUT
SMALL FOOTPRINT

Designed for high-volume manufacturing and paired with a minimal footprint, the DRILL 300 drives maximum space efficiency on shopfloors.

AUTOMATION
& IIOT

Integrated four station tool changer to allow for multiple drilling nozzles, welding heads, and/or probe tools. Additionally supports robot integration & Industry 4.0 data capture.

FLEXIBLE
PLATFORM

Available with a range of lasers to suit a wide range of customer applications. The DRILL 300 is complemented by advanced features such as breakthrough detect, line scanning capabilities, and drilling on the fly.
